Pressure Measuring Instrument Manufacturers in Mumbai

Media Instruments, your trusted Pressure Measuring Instrument Manufacturers in Mumbai, brings over 28 years of experience in delivering precise, reliable process control solutions. Also known as Pressure Gauges or Industrial Pressure Measuring Instruments, our products are crafted under rigorous ISO 9001 and CE standards to meet diverse industrial demands.

Overview of Pressure Measuring Instrument: Specifications, Types, Applications, and How It Works

Media Instruments manufactures our Pressure Measuring Instruments in compliance with ISO 9001 quality systems and IECEx/ATEX safety approvals. We follow ISO 5167 for flow and IEC 60751/60584 for temperature-based variants, ensuring accuracy and compliance at every step. Key specifications include the measurement range are 0–600 bar (custom ranges on request), the accuracy class is ±0.1% to ±0.5% of span, the materials used are SS316L wetted parts, durable alloy steel body, and the temperature rating is –40 °C to 200 °C

Our product lineup spans:

Bourdon Tube Gauges: Robust, mechanical readouts for high-pressure systems.
Digital Pressure Transmitters: High-precision, 4–20 mA output with SIL2 certification.
Diaphragm Seals: For corrosive or hygienic media, compliant with PED and FDA standards.

Typical applications include chemical processing, oil & gas metering, water treatment, and pharmaceutical production. Instruments translate pressure into readable output—mechanically via tube deflection or electronically through strain gauges—delivering real-time data to control systems.

Pressure Measuring Instrument Dealers, Suppliers amd Traders in Mumbai

We have expertise in manufacturing, dealing, and exporting Pressure Measuring Instruments tailored to Mumbai’s diverse industries. Our instruments are widely used in refineries, marine applications, and power plants across Maharashtra. Over 28 years, Media Instruments has completed 60+ major projects, satisfying 99% of our clients with support from a dedicated 70+ member team.

What Is a Pressure Measuring Instrument?

A Pressure Measuring Instrument converts fluid or gas pressure into a displayable signal. It often features CE and ATEX safety certifications, ensuring operation in hazardous zones. Calibration adheres to ISO/IEC 17025 standards, maintaining traceability and minimizing downtime.

Specifications of the Pressure Measuring Instrument

Feature	Specification
Pressure Range	0–600 bar (optional extended ranges)
Accuracy	±0.1% to ±0.5% FS
Wetted Materials	SS316L, Hastelloy C
Output Signal	4–20 mA, HART, Modbus RTU
Process Temperature	–40 °C to 200 °C
Enclosure Rating	IP65/IP67
Certifications	ISO 9001, CE (PED/Gas Appliance), ATEX, IECEx, FM/CSA, SIL2

Types of Pressure Measuring Instruments

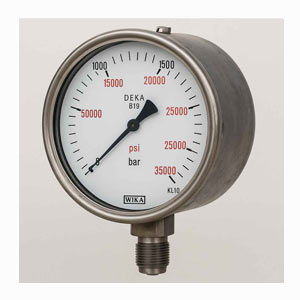

Bourdon Tube Gauges: These mechanical gauges use a curved tube that straightens under pressure, driving a pointer. They offer durability and require minimal power.
Digital Transmitters: Featuring electronic sensors and microprocessors, these transmitters provide high-resolution readings and digital communication, ideal for SCADA integration.
Diaphragm Seal Assemblies: With a flexible diaphragm isolating the instrument from process media, these assemblies protect sensors in corrosive or viscous fluids.
Differential Pressure Gauges: Designed to measure pressure drop across filters or orifice plates, these gauges help monitor flow ates and pump health.
Compound Pressure Gauges: Capable of measuring vacuum and positive pressure on a single dial, they suit HVAC and pump applications.

Applications of Pressure Measuring Instruments

Oil & Gas: Ensuring safe pipeline pressure monitoring and custody transfer accuracy.
Chemical Processing: Monitoring reactor pressure to maintain optimal reaction conditions.
Water & Wastewater: Managing pump stations and filtration systems for regulatory compliance.
Pharmaceutical Manufacturing: Validating sterile process lines with diaphragm-sealed sensors.
Power Generation: Tracking boiler and turbine pressures to maximize efficiency and safety.

How It Works

Pressure Gauges use mechanical deflection or electronic sensing to convert pressure into readable output. A Bourdon tube deforms under pressure, moving a link-and-pinion that drives the indicator. Electronic transmitters employ strain gauges on a diaphragm, producing a millivolt signal conditioned into a 4–20 mA loop, feeding control systems for continuous monitoring.

Pressure Measuring Instrument Ordering, Compliance, and Safety Information

Please contact us to request a custom quote or datasheet. Our ordering process includes:

Step 1: Submit application details (media, range, environment).
Step 2: Receive a compliance certificate per CE/PED or ATEX.
Step 3: Approve drawings and lead times.

For Contact:

Address: 401, A-Wing, 4th Floor – Malhar Pride, Shree Control Chowk, Near Canara Bank, Narhe, Pune – 411041
Phone: +91 89560 63349 | +91 98816 44294
Email: sales@mediainstrument.com_create_guid

Why Choose Us?

Innovative & High-Quality Products: Advanced designs ensure accuracy under harsh conditions.
Customized Solutions: Instruments tailored to your specific process parameters.
Reliable Performance: Long-term stability validated by ISO/IEC 17025 calibration.
Dedicated Customer Support: Technical guidance from selection through after-sales service.

Because of these strengths, Media Instruments is among the top Pressure Measuring Instrument Manufacturers in Mumbai and trusted Pressure Measuring Instrument Dealers and Suppliers in Mumbai.

Get Pressure Measuring Instrument in India | Media Instruments

Media Instruments is a trusted manufacturer, supplier, and exporter of Pressure Measuring Instruments in Mumbai, delivering solutions across India.

Feel free to get in touch - our experts are ready to assist you with your next project.
