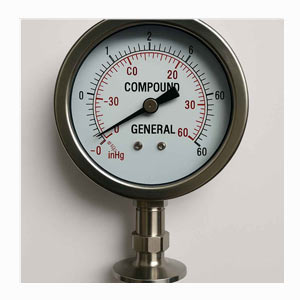

General Compound Pressure Gauge Manufacturers in Mumbai
Media Instruments, a trusted name in General Compound Pressure Gauge Dealers in Mumbai, has been delivering precision instruments for over 28 years. As leading General Compound Pressure Gauge Suppliers in Mumbai and General Compound Pressure Gauge Traders in Mumbai, we blend decades of expertise with rigorous quality controls. Also known as a vacuum-to-pressure transmitter or boost gauge (Compound Gauge, Pressure Gauge, Standard Pressure Gauge), our General Compound Pressure Gauges are engineered to exceed industrial expectations.
Overview of the General Compound Pressure Gauge: Specifications, Types, Applications, and How It Works
Our General Compound Pressure Gauges conform to EN 837-1/2/3, ASME B40.100, and ISO 5171 standards. Manufactured under ISO 9001 and calibrated per ISO/IEC 17025, each unit carries CE marking, ATEX/IECEx approvals for hazardous areas, and SIL 2/3 certification for safety loops.
Key Specifications of the general compound pressure gauge the accuracy ±1% FSD; dial size 4″ (100 mm); pressure range 1 to 0–10 bar; glycerine-filled, die-cast aluminum case; stainless-steel bourdon tube. The types of general compound pressure gauges are Basic dry gauge, liquid-filled for pulsation damping, and high-pressure “boost” variants.
General Compound Pressure Gauge Suppliers and Traders in Mumbai
We have expertise in supplying and trading General Compound Pressure Gauges. These instruments are critical across oil & gas drilling rigs, chemical reactors, and water treatment facilities. In Mumbai, Media Instruments has served over 700 clients and completed 60+ projects with a 99% satisfaction rate. Backed by a team of 70+ professionals, we ensure timely delivery, local support, and export-grade packaging.
What Is a General Compound Pressure Gauge?
A General Compound Pressure Gauge measures both vacuum (negative pressure) and positive pressure in a single instrument. It’s essential where processes may swing between below-atmosphere and above-atmosphere conditions. Certification highlights:
-
Accuracy Standard: EN 837 for mechanical gauges.
- Safety Compliance: CE per Pressure Equipment Directive 2014/68/EU; ATEX/IECEx for explosive atmospheres.
Specifications of the General Compound Pressure Gauge
| Parameter | Details |
|---|---|
| Nominal Diameter | 4″ (100 mm) |
| Pressure Range | –1 bar to 0–10 bar |
| Accuracy Class | ±1% FSD |
| Case Material | Die-cast aluminum, weatherproof |
| Filling Fluid | Glycerine (standard) |
| Bourdon Tube | Stainless steel 316 |
| Connection | ½″ NPT (M) / ½″ BSP (M) |
| Operating Temperature | –35 °C to +55 °C |
| Standards & Certifications | EN 837-1/2/3, ASME B40.100, ISO 5171 |
| Quality System | ISO 9001 manufacturing; ISO/IEC 17025 calibration |
| Safety Approvals | CE, ATEX/IECEx, SIL 2/3 |
Types of General Compound Pressure Gauge
- Standard Dry Compound Gauge: Features a simple dry case and is ideal for non-pulsating systems. It delivers reliable readings in moderate environments.
- Liquid-Filled Compound Gauge: Glycerine filling damps pulsations and vibrations, extending the gauge’s life in dynamic processes such as drilling mud lines.
- High-Pressure Boost Gauge: Designed for applications up to 25 bar. It uses a reinforced bourdon tube and thicker case to handle elevated pressures without sacrificing accuracy.
- Capsule Element Gauge: Combines capsule sensing elements for enhanced sensitivity in low differential-pressure ranges. Suitable for precise vacuum monitoring.
Applications of the General Compound Pressure Gauge
- Oil & Gas Drilling: Monitors mud pump pressures and standpipe pressure; critical for drilling efficiency and safety.
- Chemical Processing: Tracks reactor vacuum and pressure swings to maintain reaction conditions.
- Water Treatment: Ensures proper vacuum in filtration systems and positive pressure in distribution lines.
- HVAC & Refrigeration: Measures suction and discharge pressures in chillers and compressors.
- Food & Beverage: Maintains sanitary conditions by monitoring line vacuums and positive pressures during processing.
How It Works
A stainless-steel bourdon tube within the gauge bends under pressure changes. Under vacuum (below atmosphere), the tube contracts; under positive pressure, it expands. This mechanical motion drives a geared linkage, moving the pointer across a 360° dial calibrated for both ranges. The seamless transition between negative and positive scales makes it ideal for dual-mode process monitoring.
General Compound Pressure Gauge Ordering, Compliance, and Safety Information
For ordering, choose your required pressure range and connection type. Each gauge is supplied with:
- Test and calibration certificate (NABL-accredited)
- CE Declaration of Conformity
- ATEX/IECEx Certificate (if selected)
For Order:
- Address: 401, A-Wing, 4th Floor – Malhar Pride, Shree Control Chowk, Near Canara Bank, Narhe, Pune – 411041
- Phone: +91 89560 63349 | +91 98816 44294
- Email: sales@mediainstrument.com_create_guid
Why Choose Us?
- Innovative & High-Quality Products: We implement advanced manufacturing and strict quality controls, ensuring ±1% accuracy and long-term durability.
- Customized Solutions: Tailored gauge configurations—ranging from specialty connections to exotic wetted materials—meet your exact needs.
- Reliable Performance: Our gauges maintain stability in harsh environments, thanks to glycerine filling and robust casings.
- Dedicated Customer Support: From application advice to after-sales service, our 70+ strong team ensures seamless operation.
Because of these strengths, Media Instruments stands out among General Compound Pressure Gauge Dealers in Mumbai and General Compound Pressure Gauge Suppliers in Mumbai.
Get General Compound Pressure Gauge in India | Media Instruments
Media Instruments is your trusted manufacturer, supplier, and exporter of General Compound Pressure Gauges in Mumbai and across India. Our state-of-the-art facility and seasoned engineers deliver instruments that excel in accuracy and longevity.
To discuss your requirements or request a quote, reach out today. Let us help you select the perfect gauge for your application - ensuring precision, safety, and compliance.
